Τέσσερα συγκεκριμένα χαρακτηριστικά καθιστούν αυτόν τον προενισχυτή πραγματικά υψηλής κατηγορίας:
- Πλήρως ισορροπημένος σχεδιασμός double mono
- Κυκλωματική διάταξη Class-A χωρίς αρνητική ανάδραση
- Στάδιο εξόδου με λυχνία
- Ξεχωριστή τροφοδοσία ως επιλογή αναβάθμισης για ακόμα καλύτερη ποιότητα ήχου
Το Pre Box RS προσφέρει τρισδιάστατο ηχητικό σκηνικό, τέλεια μικροδυναμική και απόλυτη ανάλυση, σε συνδυασμό με ευελιξία για χρήση πηγών XLR και RCA. Σε ιδανικό συνδυασμό με τους ενισχυτές Pro-Ject Amp Box RS, το Pre Box RS παρέχει μια καθαρή ηχητική εμπειρία που αναζητά ο αληθινός audiophile. Το Pre Box RS διαθέτει πολυτελές περίβλημα, διαθέσιμο σε ασημί ή μαύρο φινίρισμα.
Four specific characteristics make this a true high-end preamplifier:
1. Fully balanced double mono design
2.class-A circuitry with no negative feedback
3. Tube output stage
4. Separate power supply as an upgrade option for further improved sound quality.
Pre Box RS offers 3-dimensional sound-staging, perfect micro dynamics and ultimate resolution combined with flexibility to use XLR and RCA sources. Perfectly combined with Pro-Ject Amp Box RS amplifiers, Pre Box RS will give pure sound experience, that the real audiophile is looking for. Pre Box RS utilises a luxury casing, that is available in silver or black finish.
Features
- Fully balanced double mono design
- Ultra-linear and ultra low noise
- Pure Class A circuitry
- Input switching via relais
- Low ESR capacitors
- Blue Alps volume control
- 3 XLR & 3 RCA inputs
- 1 Pre–out XLR & 1 Record-out RCA
- DC power supply (< 1 watt standby power)
- IR remote control included
- Metal casing protects against vibration and interference
- Available in black and silver
- Switchable DAC chips: 2x PCM1792 or PCM5102
- 9 digital inputs: i²S, AES/EBU, Toslink, S/PDIF coax
- Analogue: Pre-out XLR/RCA/headphone, RCA input
- Headphone amp with adaptable output impedance
- Fully balanced double mono design
- Output stage switchable between 6922 tube & solid state
- Ultra-linear and ultra low noise
- Pure Class A circuitry
- Blue Alps volume control
- DC power supply (< 1 watt standby power)
- IR remote control included
Technical data

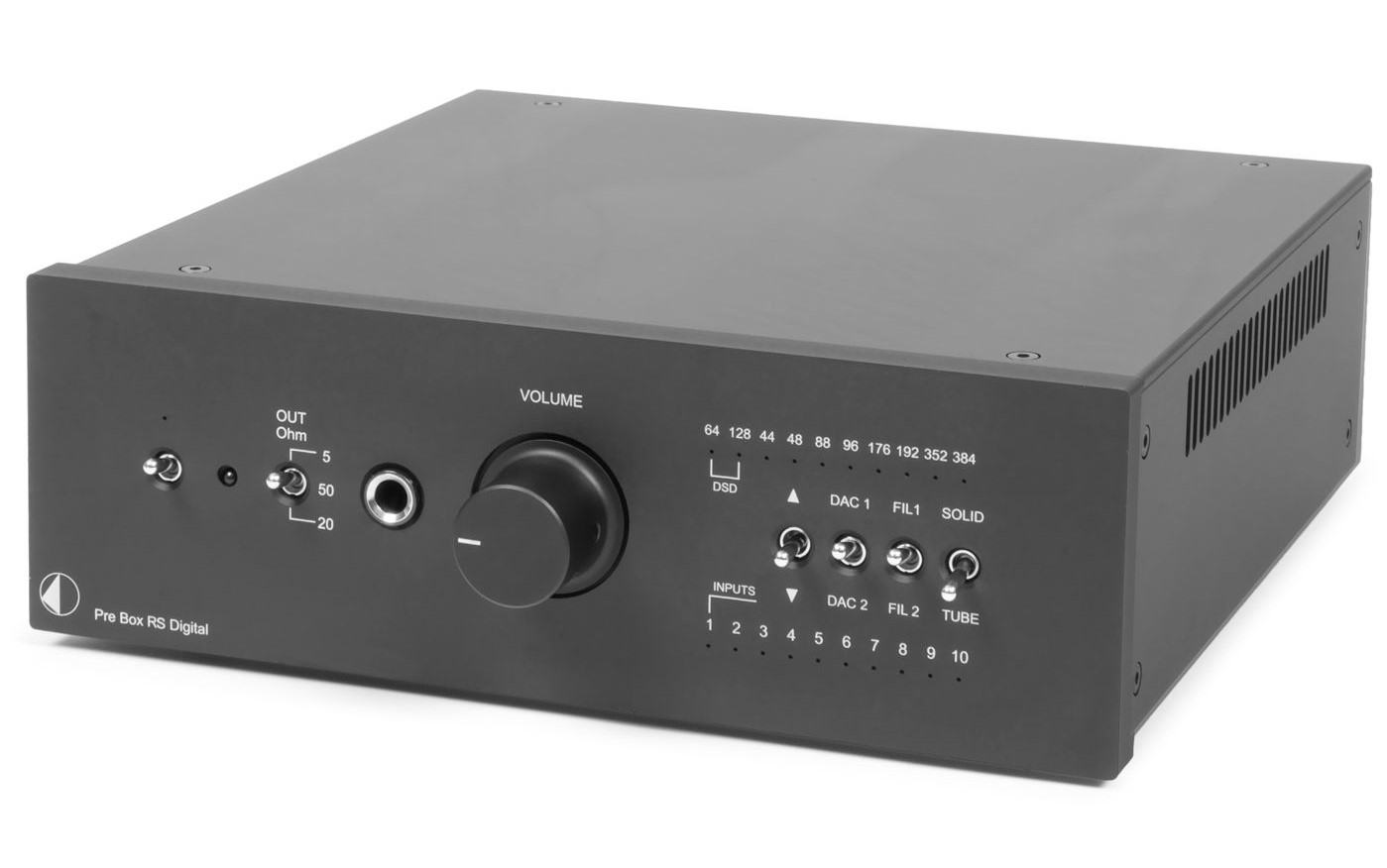

Pro-Ject Pre Box RS Digital
| DAC |
DAC1 – 2 x PCM1792 24/192 |
|
DAC2 – PCM5102 32/384 |
| Tubes |
6922 EH |
| Digital inputs |
1 x USB 2.0 Audio 32/384 + DoP-DSD 64/128
1 x RJ45 Sonic I2S for CD Box RS in Sonic Mode
2 x S/PDIF 24/192, 4 x S/PDIF Optical 24/96
1x AES/EBU balanced 24/192
|
| Line-level input |
1 RCA/phono sockets |
| Input impedance |
33kohms |
| Analog outputs |
Pre-out (XLR & RCA), Headphone (6,35mm jack) |
| Headphone impedance |
5 / 20 / 50 ohms switchable |
| Analog input sensitivity |
1,6V RMS for full headphone output |
| Frequency response |
20Hz - 50kHz (+ 0/- 0,1 dB) |
| Signal to noise ratio |
-100dB (IEC-A) |
| THD |
0,005% solid state output/ 0,25% tube output |
| Master clock output |
16,9344MHz for CD Box RS in Sonic Mode |
| Outboard power supply |
20V/3A DC suitable for your country's mains supply |
| Power consumption |
300mA solid / 850mA tube / 90mA standby |
| Dimensions W x H x D |
206 x 72 x 200mm (210 with sockets) |
| Weight |
1950g without power supply |
