After the big success of our VT-E BT we decided to create a phono preamplifier that turns any turntable (with moving magnet cartridge) into a modern Bluetooth streamer.

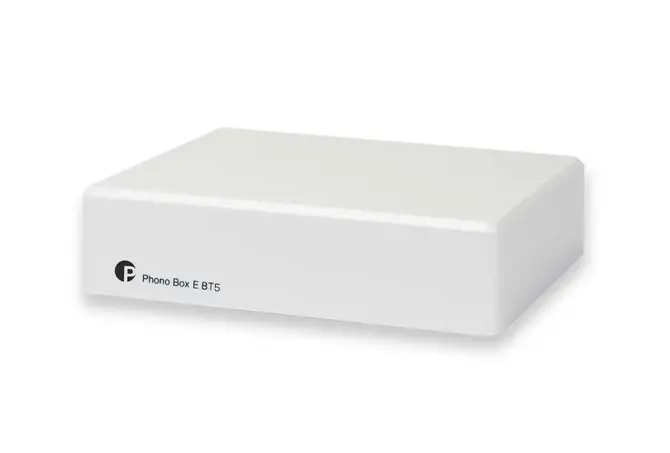

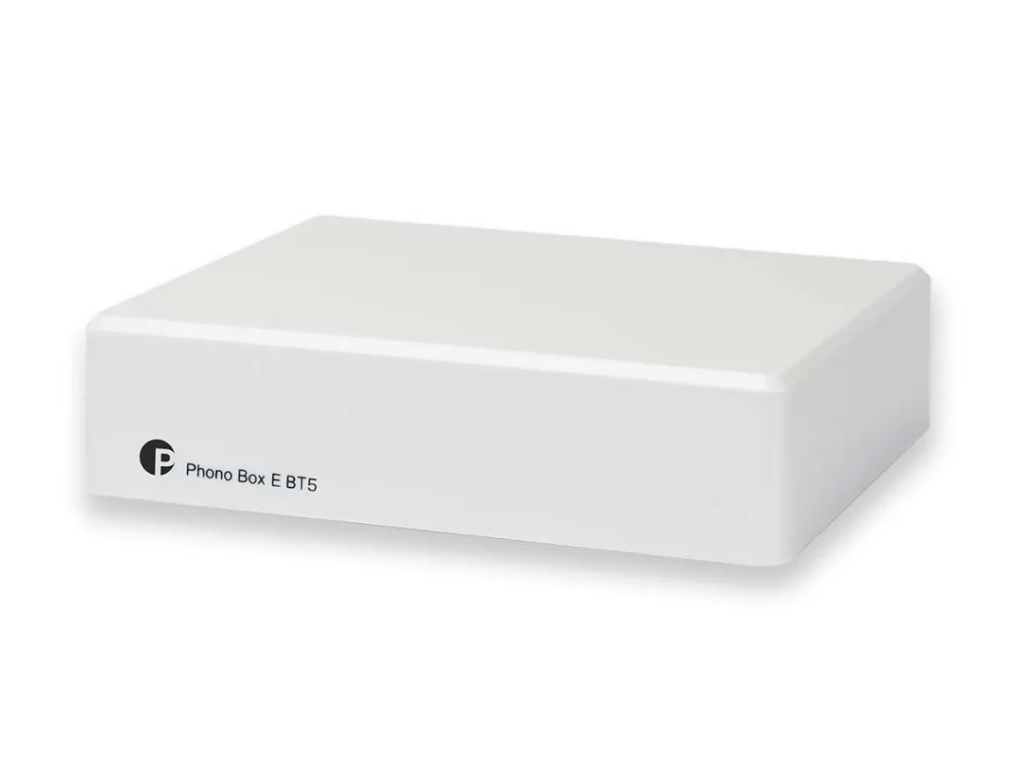

Phono Box E BT5 offers two separate inputs, a phono and a line level input, as well as two separate outputs. It can be used as an ordinary MM phono stage that connects to any hifi amplifier via its line level output (3.5 mm jack) or it can be used as a Bluetooth streamer. It takes the provided analogue input signal, converts it and sends digital audio to any Bluetooth receiver within a 10 m range. Those devices could be either Bluetooth headphones, speakers or any other Bluetooth receiver.

Phono Box E BT5 is the perfect companion for all modern audiophiles who want to enjoy their vinyl hobby with the comfort of wireless streaming and in high-definition! Bluetooth 5.2 together with aptX Adaptive and aptXHD enables high-resolution formats in audiophile quality.

The Phono Box E BT5 is best paired with our BT Box E HD to ensure high-resolution transmission compatibility!

Features

• Connect your turntable wirelessly
• Bluetooth 5.2 streaming with aptX Adaptive and HD support
• 2 Inputs: 1 Phono and 1 Line Input
• Suitable for MM cartridges
• Precise RIAA equalisation
• Use analogue RCA & BT output simultaneously
• Low noise circuitry
• Internal metal shielding
• Gold-plated RCA connectors
• Outboard power supply included
• Colour options: black or white

Specifications:

Phono input impedance
47 kohms

Phono capacitance
100 pF

Gain phono
34 dB

Inputs
1 Phono (RCA), 1 Line In (3.5 mm)

Outputs
1 Line Out (3.5 mm), 1 Bluetooth

Noise floor
74dbA (A-weighted)

THD
< 0,04%

Phono/Line in max. input voltage
800mV

RIAA equalisation curve accuracy
within 0.5 dB/20 Hz - 20 kHz

Bluetooth
V5.2, aptX, aptX Adaptive, aptX HD

Outboard power supply
18 V/500 mA DC, suitable for your country's mains supply

Power consumption
200 mA DC

Dimensions W x H x D (D with sockets)
120 x 32 x 100mm

Weight
280 g without power supply
