For turntablist and portablists
VNL
Among skilled DJs, the need for specialized tools is ongoing, driving their creative journey toward innovation's edge. These DJs consistently seek to expand performance boundaries and discover fresh artistic dimensions.

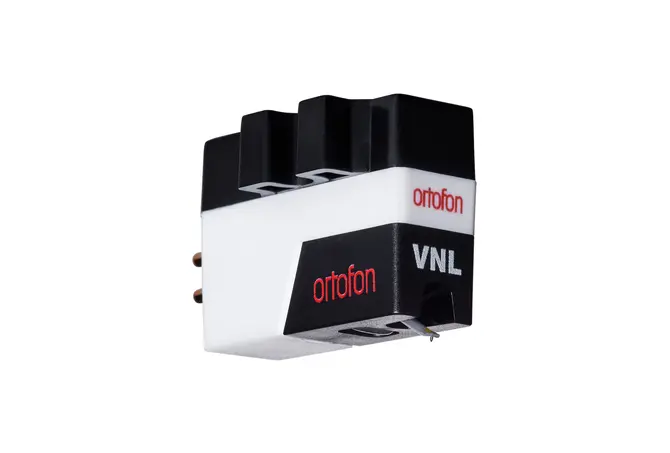

Building on this understanding and drawing from our extensive experience in industrial design and technology, we introduce the Ortofon VNL cartridge. Carefully designed to meet the demands of modern turntablists and portablists, the VNL stands as a testament to our commitment to pushing limits and reshaping possibilities.

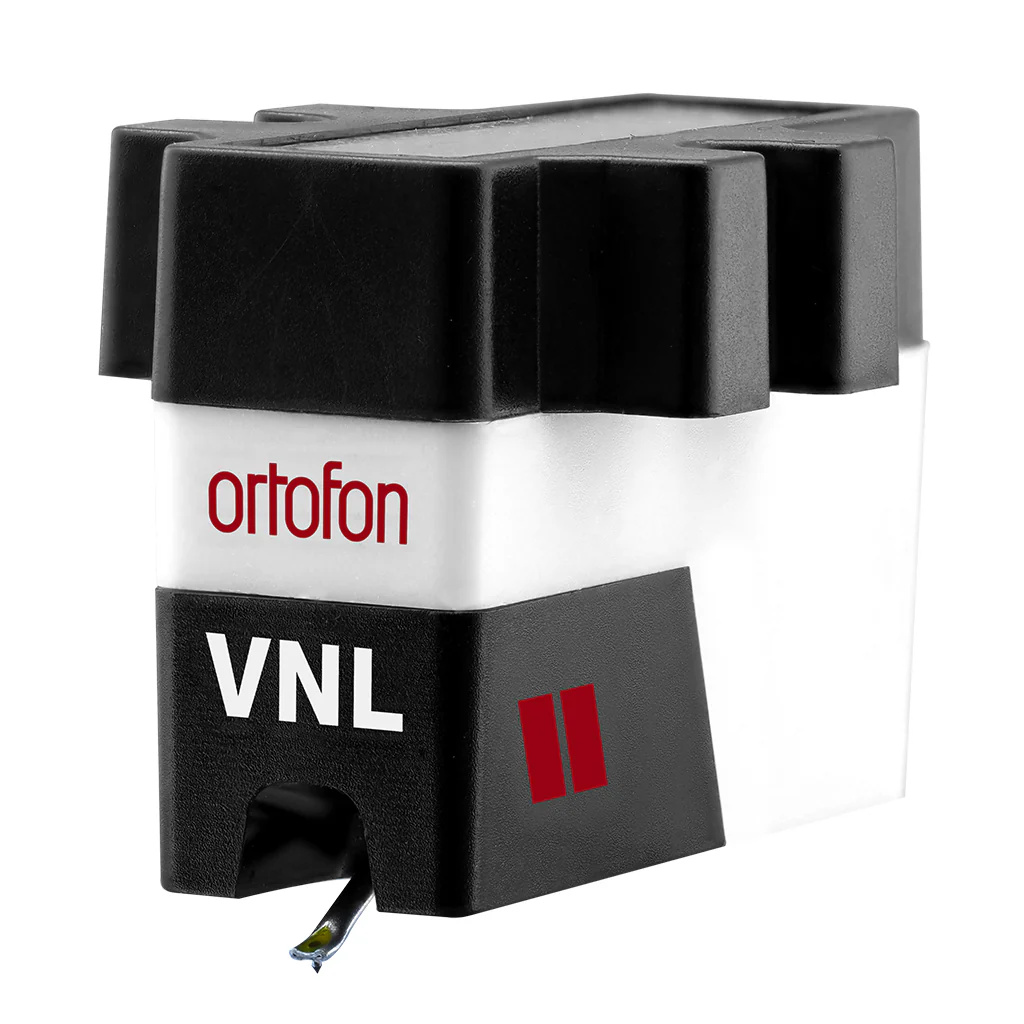

The VNL comes with the VNL II stylus pre-mounted on the VNL cartridge body.
Versatile styli options
Rubber suspension
To align with the diverse demands of contemporary DJs, the VNL cartridge offers interchangeability with three distinct styli, each equipped with suspension types of varying feel and rigidity:
- Stylus VNL I: Compliance, Dynamic Lateral 16 μm/m N - Flexible
- Stylus VNL II: Compliance, Dynamic Lateral 15 μm/m N - Rigid
- Stylus VNL III: Compliance, Dynamic Lateral 14 μm/m N - Firm
| Output voltage at 1 kHz, 5cm/sec: | 6 mV |
| Channel separation at 1 kHz: | 20 dB |
| Frequency response: | 20 Hz – 20 kHz (–2 / +4 dB) |
| Tracking ability at 315 Hz: | 90 µm |
| Compliance, dynamic, lateral: | 15 µm/mN |
| Stylus type: | Spherical |
| Stylus tip radius: | R 18 µm |
| Tracking force range: | 3 – 5 g |
| Tracking force, recommended: | 4 g |
| Internal impedance (DC): | 700 Ohm |
| Cartridge colour: | White |
| Cartridge weight: | 6.5 g |
| Premounted cartridge weight: | 16.0 g |
| Recommended load resistance: | 47 kOhm |
| Internal inductance: | 450 mH |
| Recommended load capacitance: | 47 kOhm |
| Replacement stylus: | Stylus VNL |
