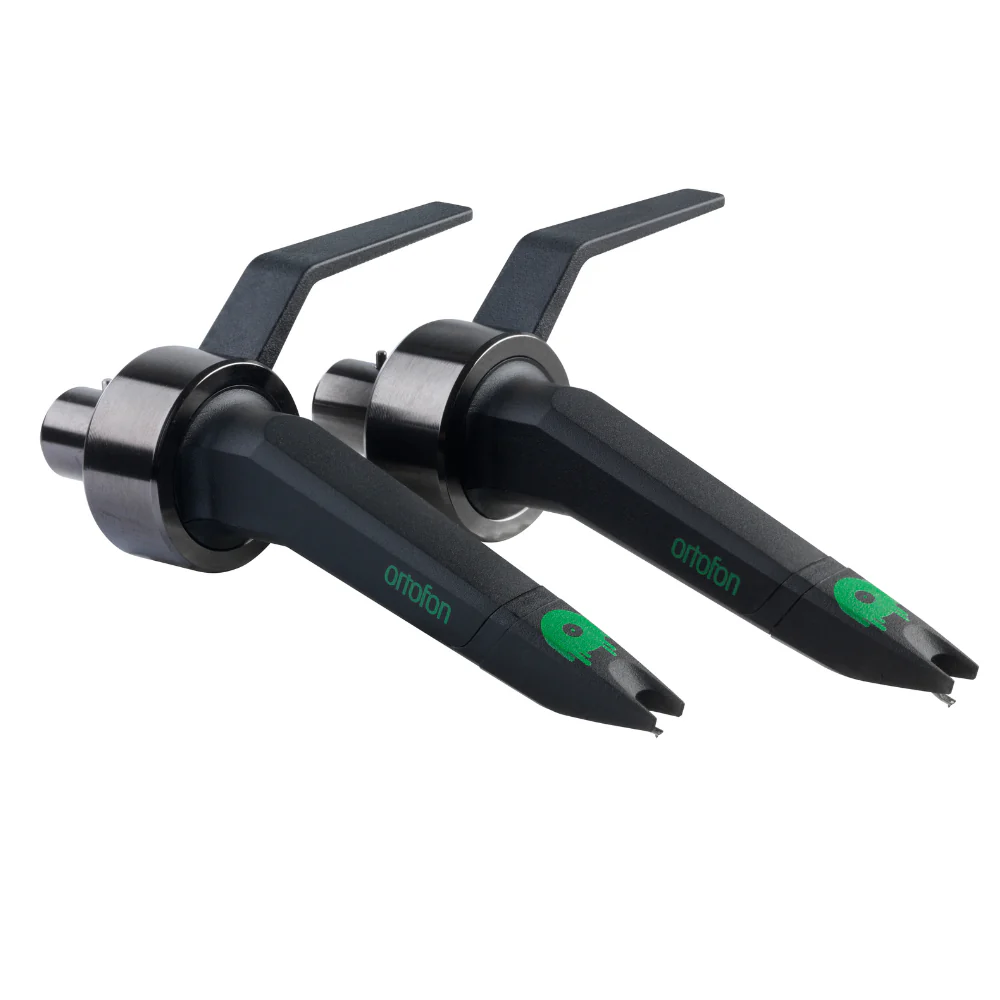

Concorde MKII Mix
The MIX is a general-purpose model for scratch and back-cueing, providing great performance and durability. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.
A groovy all-rounder
Stylus
The Concorde MKII MIX provides great performance and durability with a good quality spherical stylus and a solid cantilever and serves general purposes well.
| Channel balance at 1 kHz: | 1.5 dB |
| Output voltage at 1 kHz, 5cm/sec: | 6 mV |
| Channel separation at 1 kHz: | 20 dB |
| Tracking ability at 315 Hz: | 100 μm |
| Compliance, dynamic, lateral: | 14 μm/mN |
| Cantilever material: | Aluminium |
| Stylus type: | Spherical diamond |
| Stylus tip radius: | R 18 μm |
| Tracking force range: | 2 – 4 g |
| Tracking force, recommended: | 3 g |
| Internal impedance (DC): | 700 Ohm |
| Cartridge weight: | 18.5 g |
| Recommended load resistance: | 47 kOhm |
| Internal inductance: | 450 mH |
| Recommended load capacitance: | 200 – 600 pF |
| Replacement stylus: | Stylus CC MKII Mix |
