18-Input Digital Mixer for iPad/Android Tablets with 16 Midas PRO Preamps, Integrated WiFi Module and Multi-Channel USB Audio Interface

The Midas M32 completely redefined what is possible from a digital mixer – and thousands of users are enjoying the results. Now that technology has been incorporated into the small but powerful MR18 rack-mountable mixer, which will forever change the way you record and the way you play live music.

Product Features

• iPad/Android tablet controlled 18-input digital mixer for studio and live application
• 16 award-winning Midas PRO microphone preamplifiers
• Built-In Tri-Mode WiFi router for direct operation-no need for external routers
• 18 x 18 channel, bidirectional USB2.0 interface
• Dugan-style Auto-Mixing automatically manages microphone gain sharing
• 4 digital signal processing effects engines
• ULTRANET connectivity for P-16 Personal Monitoring System

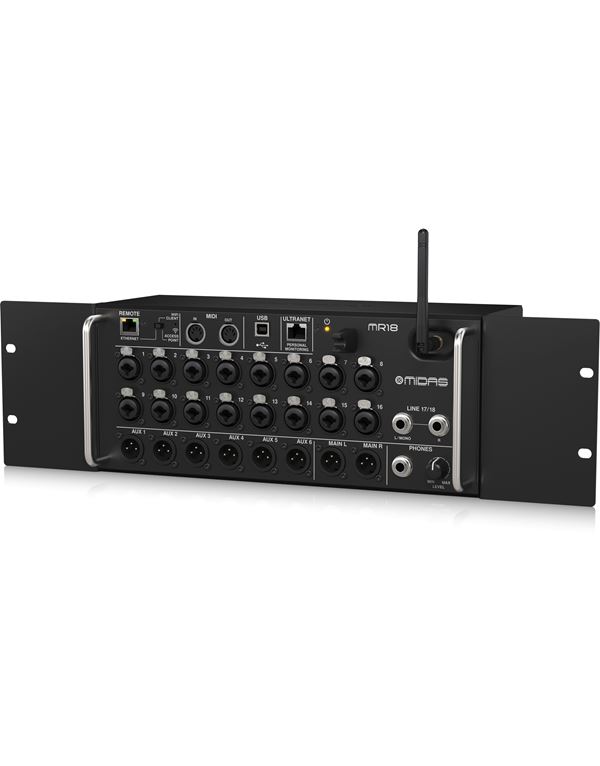

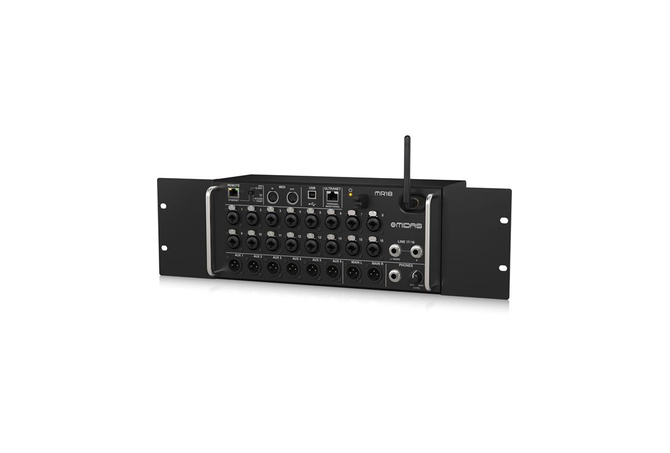

• Rack ears and protection bumpers included for flexible rack and onstage applications
• 6 aux and main LR buses with inserts, full dynamics processing and 6-band parametric or 31-band graphic EQ
• 6 XLR aux outputs and 2 XLR main outputs plus phones connector
• 40 bit floating point digital signal processing
• Free iOS, Android and PC/Mac/Linux apps available for remote operation via Ethernet, LAN or WiFi
• MIDI In/Out allows controlling the mixer via MIDI equipment or for use as a USB MIDI interface
• Future firmware updates, incl. new FX "Plug Ins", downloadable from midasconsoles.com free of charge
• Auto-ranging universal switch-mode power supply

Specifications :

Processing
Number of processing channels	18 input channels, 4 FX return channels, 6 aux buses, main LR
Internal effects engines	4 true stereo
Signal processing	40-bit floating point
A/D-D/A conversion	24-bit @ 44.1 / 48 kHz, 115 dB dynamic range
Analog I/O latency*	0.8 ms
Connectors
Programmable mic preamps, designed by Midas PRO	16 XLR/TRS combo jacks, balanced
Line / Aux inputs, stereo	2 TRS, balanced
Main outputs	2 XLR, balanced
Aux outputs	6 XLR, balanced
Phones outputs	1 TRS
ULTRANET	1 RJ45
MIDI inputs / outputs	1/1 DIN
Ethernet	1 RJ45
Audio/Midi interface	1 USB Type B
Mic Input Characteristics
Preamp design	Midas PRO
THD + noise, unity gain, 0 dBu, 1 kHz	0.005%, unweighted
Phantom power, switchable per input	48 V
EIN noise, at +60 dB gain, 150R source	-125 dBu, 22 Hz - 22 kHz unweighted
CMRR, XLR, 1 kHz @ unity gain	Typically 65 dB
CMRR, XLR, 1 kHz @ +60 dB gain	Typically 90 dB
Input/Output Characteristics
Frequency range, @ 48 kHz sample rate, +/- 0.5 dB	20 Hz - 20 kHz
Dynamic range, analog in to analog out	107 dB , 22 Hz - 22 kHz unweighted
A/D dynamic range, preamp to converter	110 dB , 22 Hz - 22 kHz unweighted
D/A dynamic range, converter and output	111 dB , 22 Hz - 22 kHz unweighted
Cross talk rejection @ 1 kHz, adjacent channels	90 dB
Mic/Line 1-16 Input impedance XLR jack, unbal. / bal.	10 k?
Non clip maximum input level, XLR	+23.5 dBu
Line 17-18 Input impedance, TRS unbal. / bal.	20 kΩ / 40 kΩ
Non clip maximum input level, TRS	+21 dBu
Output Characteristics
Output impedance, XLR	50 ?
Maximum output level, XLR	+21 dBu
Phones output impedance	50 Ω
Maximum phones output level	+21 dBu
Noise @ unity gain, 1 input assigned, XLR and TRS	-86 dBu, 22 Hz - 22 kHz unweighted
Noise when muted, XLR and TRS	-90 dBu, 22 Hz - 22 kHz unweighted
USB Audio/MIDI Interface
Type	USB 2.0, type B
Supported operating systems	Windows 7 or higher**, Mac OS X 10.6.8 or higher, iOS 7 or higher (iPad), Linux
Supported sample rates	44.1 / 48 kHz
I/O audio channels	18 x 18
I/O MIDI channels	16 x 16 (1 port)
WLAN Module
Antenna	External, SMA connector, 50 ?
Access Point, number of clients	Max. 4
IEEE 802.11 b/g standard	2.4 GHz
Frequency Range	2412-2462 MHz
WLAN channels (Wifi Client, Access Point)	1-11
Max Output Power	19 dBm (802.11 b) / 18 dBm (802.11 g)
Power
Switch-mode power supply	Autorange 100-240 V, (50/60 Hz)
Power consumption	30 W
Physical
Standard operating temperature range	5°C – 40°C (41°F – 104°F)
Dimensions	333 (W) x 149 (D) x 140 (H) mm, (13.1 x 5.9 x 5.8")
Weight	3.9 kg (8.6 lbs)

* including all channel and bus processing, excluding insert effects
** Windows ASIO driver available as download from midasconsoles.com; compatible to CoreAudio on Mac OS X and iOS ***Mac OS X is a trademark of Apple, Inc.

Warning: Operation of this equipment in a residential environment could cause radio interference.
