500 Series Portable Chassis for 6 Modules with Advanced Audio Routing and Rackmount Kit

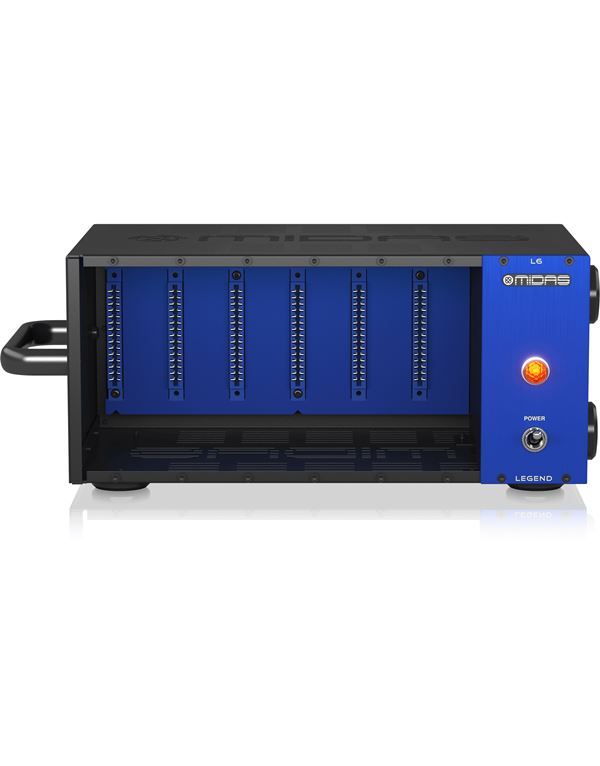

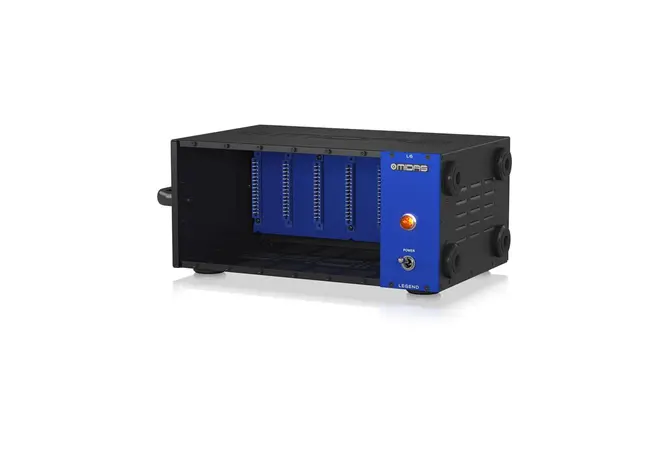

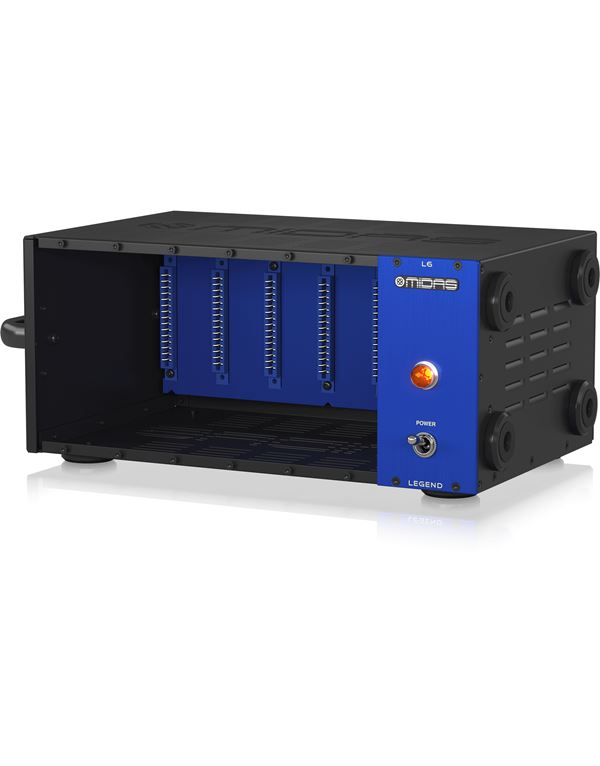

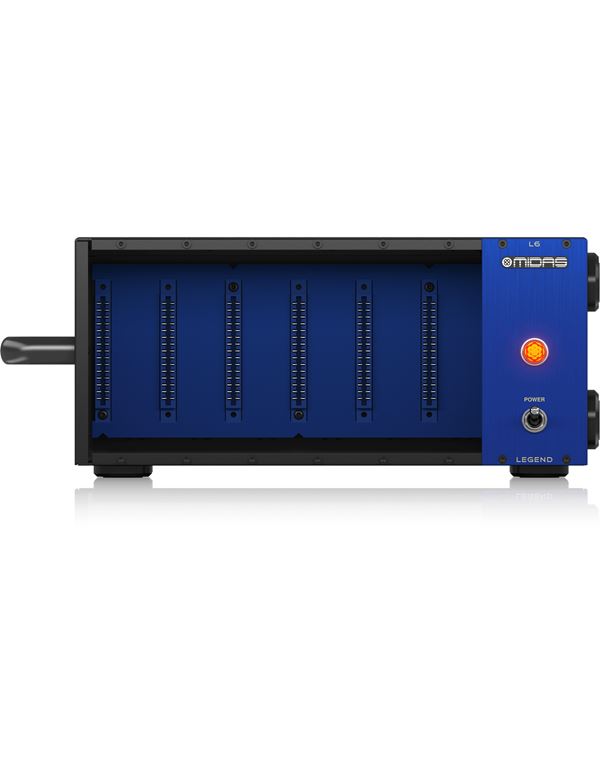

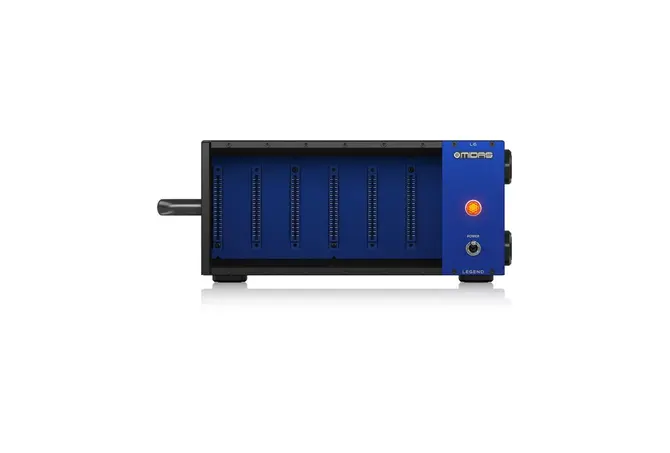

The LEGEND L6 500 Series Portable Chassis lets you mix and match a wide range of audio processing modules to build the ideal signal chain for any application. With space for up to 6 single-width modules, advanced audio routing for simplified cabling, and a robust auto-ranging universal switch-mode power supply, you can take your favourite modules anywhere in the world with complete confidence. The included rackmount kit allows the L6 to be installed in standard 19" studio and touring racks.

Product Features

• 500 series portable chassis for 6 single-width modules
• Advanced audio routing reduces cabling complexity
• Audio output link switches provide cable-free daisy-chain connections between modules
• Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking

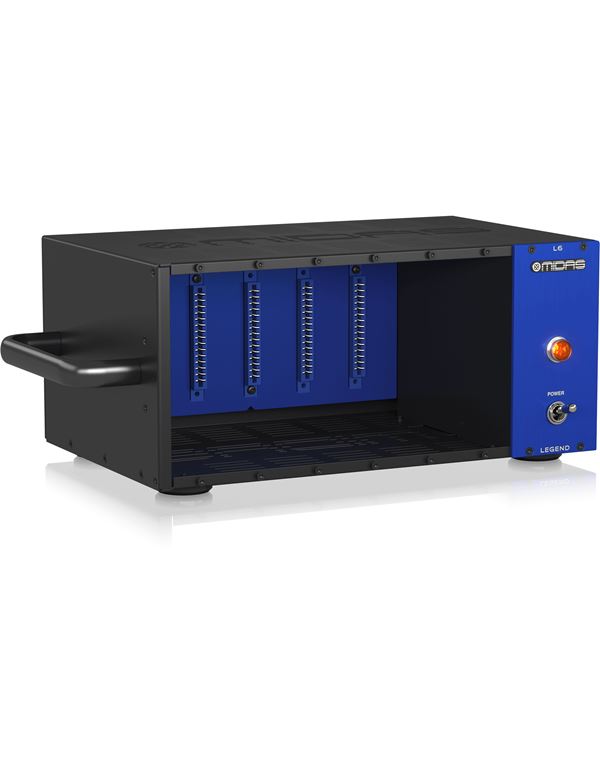

• Rugged free-standing chassis with convenient carrying handle for portable applications

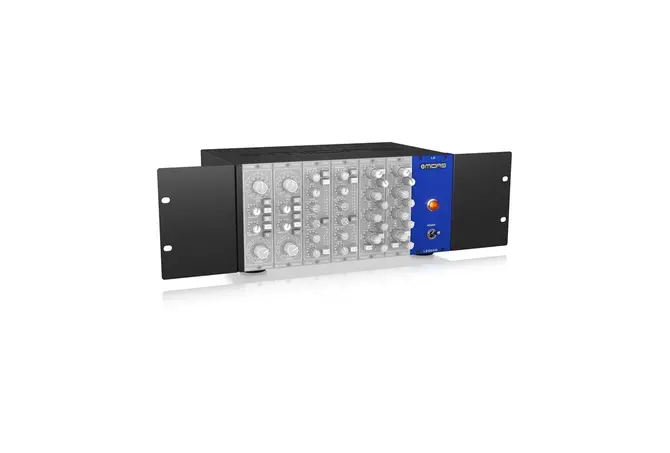

• 3U 19" rackmount kit allows installation in recording studios and live touring racks (included)
• Earth lift switch eliminates any ground loop problems
• High power auto-ranging universal switch-mode power supply for use worldwide
• Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ +48 V
• Main and auxiliary inputs and outputs per channel on Neutrik XLR connectors
• Premium quality components throughout for crystal-clear audiophile signal path

Specifications :


Controls
Power	Front panel switch and lamp
Comp Bus	Rear panel switches, 1-2, 2-3, 3-4, 4-5, 5-6
Audio link	Rear panel switches, 1-2, 2-3, 3-4, 4-5, 5-6
Ground lift	Rear panel switch
Input and Output
Input	6 x balanced XLR
Aux input	6 x balanced XLR
Output	6 x balanced XLR
Aux output	6 x balanced XLR
Power Requirements
AC Input Voltage	100-240 VAC, 50-60 Hz, IEC input
Output Voltages	3.2 A @ +-16 V, 300 mA @ +48 V (phantom power)
Power consumption	Typically 35 W
Physical
Dimensions (HxWxD) with handle and feet	140 x 349 x 211 mm (5.5 x 13.7 x 8.3")
Dimensions (HxWxD) with rack ears, no feet	132 x 483 x 211 mm (5.2 x 19 x 8.3")
Weight	4.4 kg (9.7 lbs)
