500 Series Rackmount Chassis for 10 Modules with Advanced Audio Routing

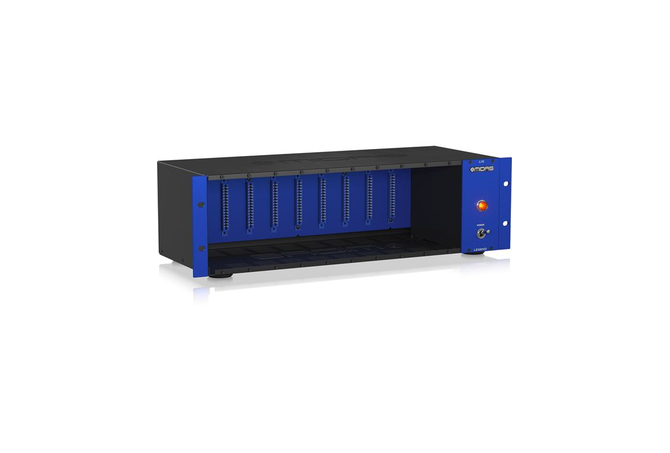

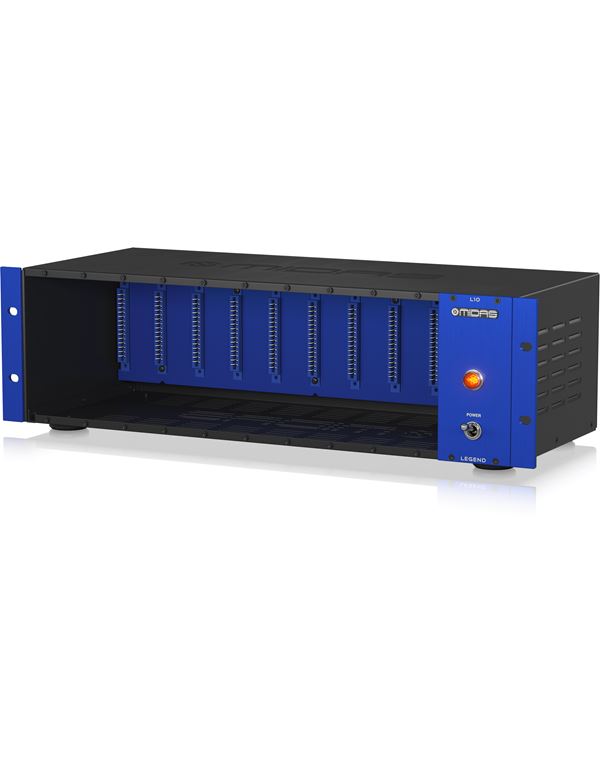

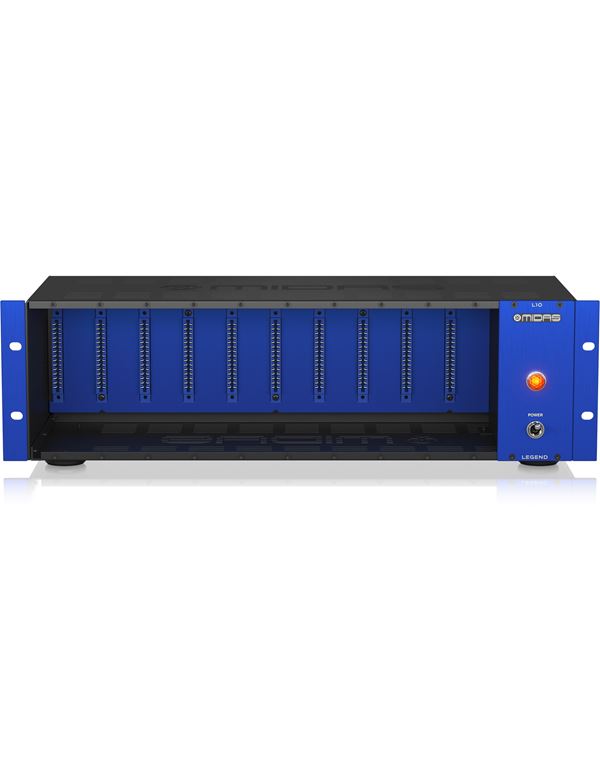

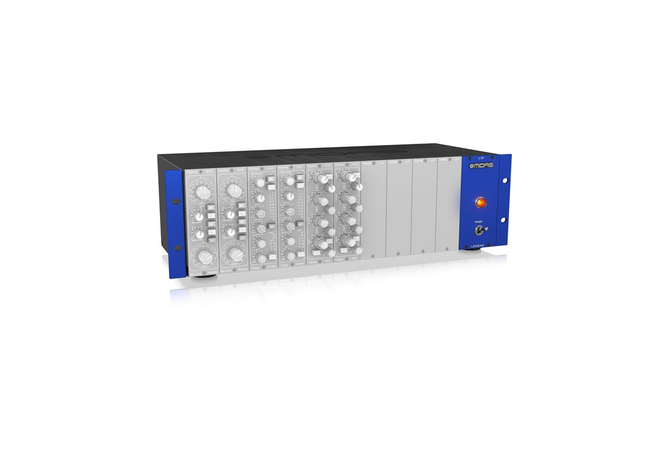

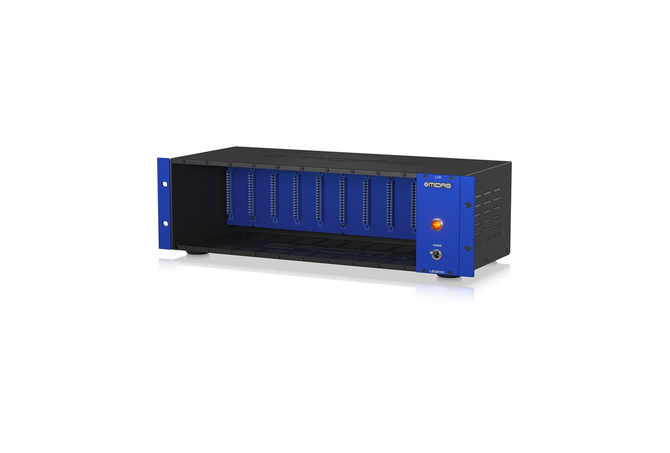

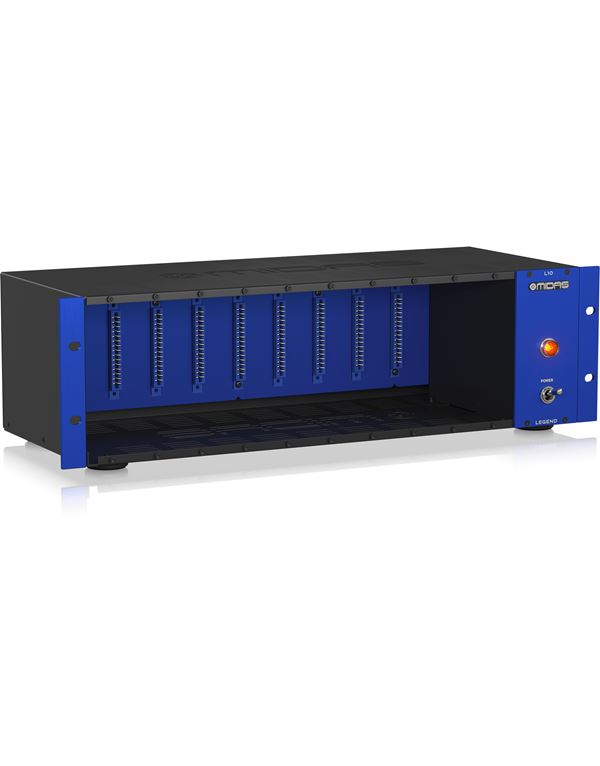

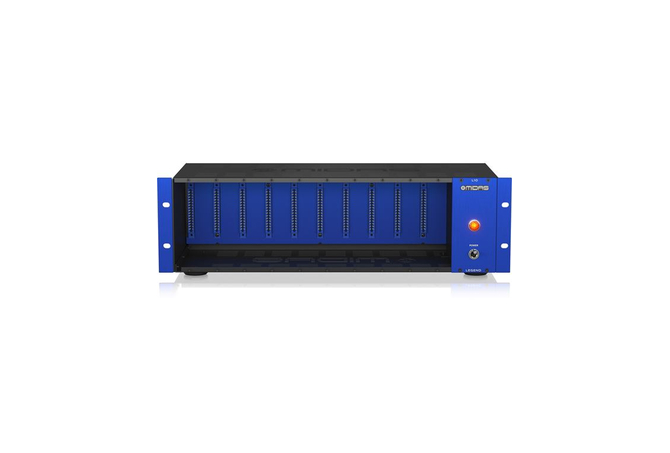

The LEGEND L10 500 Series Rackmount Chassis lets you mix and match a wide range of audio processing modules to build the ideal signal chain for any application. With space for up to 10 single-width modules, advanced audio routing for simplified cabling, and a robust auto-ranging universal switch-mode power supply, you can take your favourite modules anywhere in the world with complete confidence. Designed to accommodate all 500 series-compatible modules and plug-in cards, the L10 is the perfect companion for your MICROPHONE PREAMPLIFIER 502, COMPRESSOR LIMITER 522, PARAMETRIC EQUALISER 512, and the many other modules currently under development – as well as those from 3rd party vendors.

Product Features

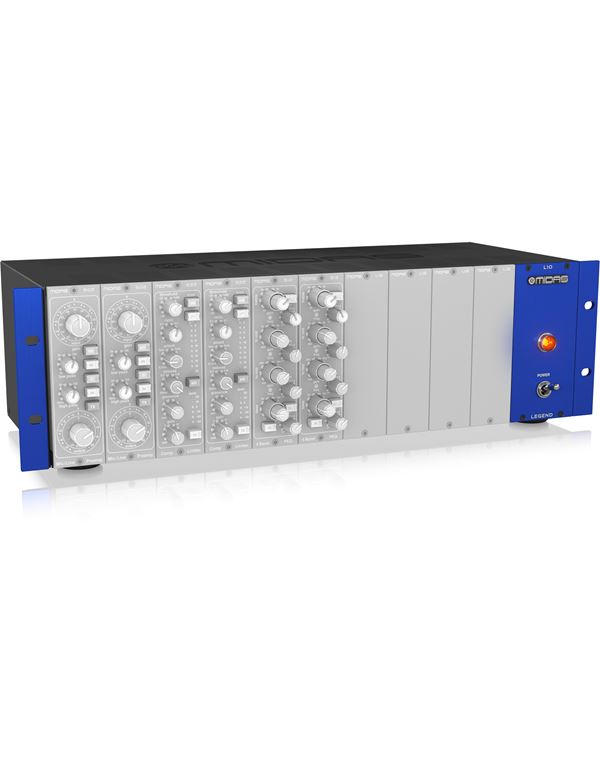

• 500 series rackmount chassis for 10 single-width modules
• Advanced audio routing reduces cabling complexity
• Audio output link switches provide cable-free daisy-chain connections between modules
• Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking
• Rugged 3U rackmount chassis for durability in portable applications
• Earth lift switch eliminates any ground loop problems
• High power auto-ranging universal switch-mode power supply for use worldwide
• Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ +48 V

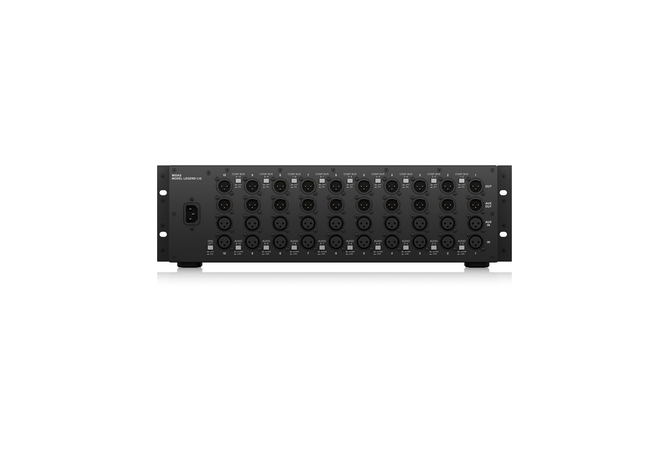

• Main and auxiliary inputs and outputs per channel on Neutrik XLR connectors
• Premium quality components throughout for crystal-clear audiophile signal path

Specifications :

Controls
Power	Front panel switch and lamp
Comp Bus	Rear panel switches, 1-2, 2-3, 3-4, 4-5, 5-6, 6-7, 7-8, 8-9, 9-10
Audio link	Rear panel switches, 1-2, 2-3, 3-4, 4-5, 5-6, 6-7, 7-8, 8-9, 9-10
Ground lift	Rear panel switch

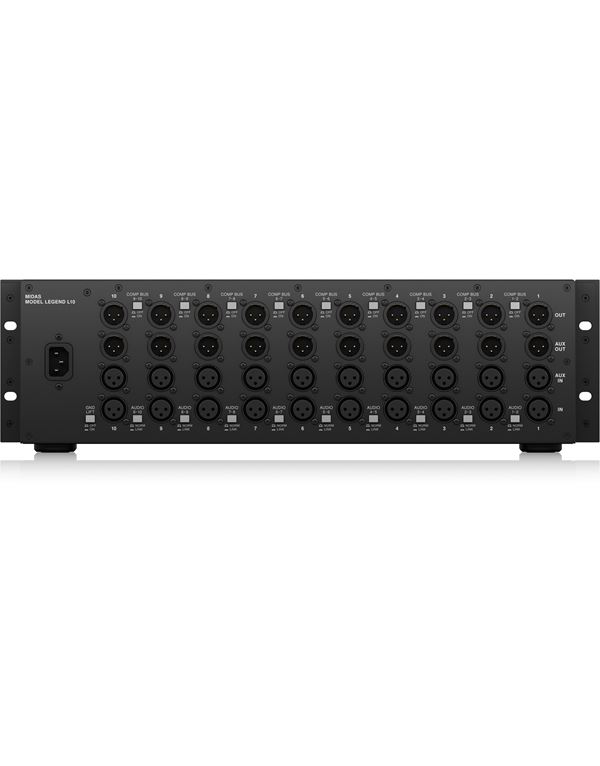

Input and Output
Input	10 x balanced XLR
Aux input	10 x balanced XLR
Output	10 x balanced XLR
Aux output	10 x balanced XLR
Power Requirements
AC Input Voltage	100-240 VAC, 50-60 Hz, IEC input
Output Voltages	3.2 A @ +-16 V, 300 mA @ +48 V (phantom power)
Power consumption	Typically 55 W
Physical
Dimensions (H x W x D)	140 x 483 x 211 mm (5.5 x 19 x 8.3")
Dimensions (H x W x D) without feet	132 x 483 x 211 mm (5.2 x 19 x 8.3")
Weight	(5.2 x 19 x 8.3") Weight 4
