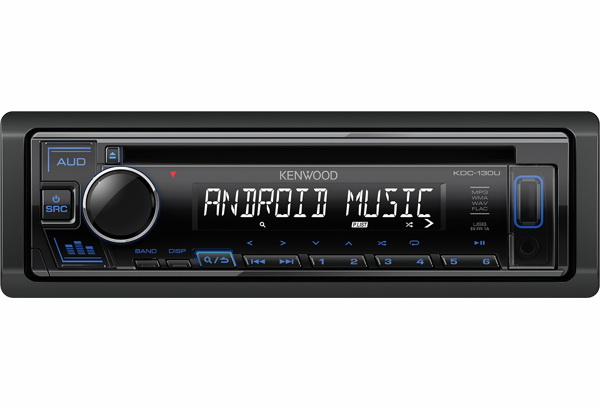

DIN Size
1 DIN
Detachable Faceplate
Yes
Key Illumination
Blue LED
Rotary Encoder & Control Knob
Dual Accent Key
Audio settings & Easy EQ
Back-up Memory
Radio presets
Attenuator with Smooth Volume Return
Touch Sensor Tone
Digital Clock (24H)
Clock display when power-off
default off
All-off Select (20/40/60 minutes)

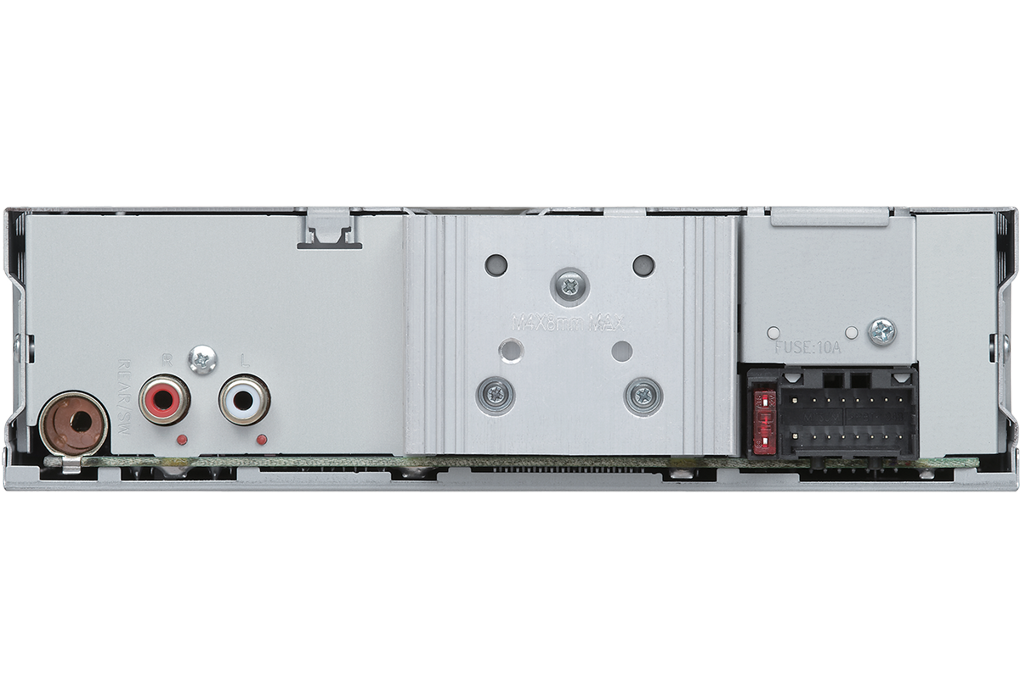

Built-in Connector
Mitsumi, 16 pin
ISO connector
Yes, Mitsumi to ISO cable
USB interface x 1
Yes, (Front)
Firmware upgreadable
Display Type
Liquid Crystal Display (LCD)
Display Layout
13 Segments x 13 Digit
Vertical Aligment Liquid Crystal Display
Display Illumination
White (LED)
Dimmer Control
Manual / Set by Timer
Brightness control
0 - 31 steps
Demo Mode
Menu text in selectable language
English(default) / Spanish / French / Russian
Dress plate
Piano Black
Preset key finish
Escutcheon finish
Black Injection
Volume & operation knob or wheel
Piano black with chrome finished ring
Triangle Illumination
Red LED
Front terminals dust cover
Key illumination
RedLED
Illuminated front USB port
Brightness Control (Key)
0 - 31 step
Dimmer Control (Key)
Brightness zone concept
2 zone brightness control
Station Select
Manual / Preset
FM Reception
AM (MW/LW) Reception
Tuner Presets (FM/AM)
24 Presets (18FM / 6AM)
Preset memory w/o back-up power
Mixed preset memory (FM & AM)
6 presets
Up/Down Seek/Scan
Automatic Memory Entry (AME)
FM Stereo / Mono Selector
Radio Data System
Radio Text Plus
Traffic Information
Local search
AF Regional
Selectable: AF/AF Reg/OFF
Auto TP search
Enhanced Other Networks Function (EON)
Program Type Function (PTY)
MP3 files are playable
CD/USB
WMA (.wma) files are playable
WAV (.wav) files are playable
USB
FLAC files are playable
CD-R/RW Compatible
MP3 Playback with ID3 Tag Display
WMA (Windows Media Audio) Playback
CD Text with special Character Support
English(default) / Spanish / French / Russian / Greek
D.A.C. processing
24bit
0 bit Mute
Random Function
DISC Random/Random OFF
Repeat Function
Track Repeat/All Repeat
USB terminal
Yes, Front with dust cover
USB Type
2.0 High speed
Kenwood Music Control App for Android
Yes, (with Android OS 4.1 ~ 7.0 )
MP3, WMA, WAV, FLAC playback
Repeat/Scan/Random search
Repeat / Random Play
Direct search
Resume play
Time code display
1A Charge Capability for Smartphone.
Maximum Output Power
50W x 4
MOSFET Power IC
Auxiliary Type
Mini-jack, front panel
Pre-out
1 RCA
Pre-out Output Level
2.5V
Preout Rear / Subwoofer Switchable
Subwoofer Reference Level Adj.
Tone Control / Easy EQ
3-Band, 8 Presets
Balance/Fader/Loudness Control
Bass Boost Circuit
Off/+1/+2/+3/+4/+5
Att.(-20dB) with smooth Volume Return
Parametric Equalizer + Presets
3-Bands Parametric Equalizer with 8 Presets.
Low-pass Filter
Speaker Size Control
Yes, Off / 5" or 4" / 6*9" or 6" / OEM
Kenwood Sound Reconstruction
Drive EQ
Front USB & AUX Input
OEM Wired Remote Control ready
DC-Cord
Mitsumi to ISO
Power Control (P.CON) wire
Amplifier pre-out
1 RCA: Rear/Subwoofer (selectable)
FM Antenna Input
JASO connector
FM range: 87.5Mhz - 108MHz (50Khz step)
FM Usable Sensitivity
0.71μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity
2μV/75ohm (S/N 46dBf)
FM Frequency Response
30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)
64dB
FM Stereo Separation (1kHz)
40dB
MW range: 531kHz - 1611kHz (9kHz step)
MW Usable Sensitivity
28.2μV
LW range: 153kHz - 279kHz (9kHz step)
LW Usable Sensitivity
50μV
MP3 Format
MPEG 1/2 Audio Layer 3-Files
WMA Format
in accordance with Windows Media Audio
WAV Format
RIFF waveform Audio Format (only for LinearPCM)
FLAC Format
FLAC files (up to 48kHz/16bit)
Laser Diode
GaAIAs
Digital Filter(D/A)
8 Times Over Sampling
Digital/Analogue Converter
16 Bit
Wow & Flutter
Below Measurable Limit
Frequency Response
20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion
0.01% (1kHz)
Signal to Noise Ratio
92dB (1kHz)
Dynamic Range
88dB
Channel Separation
83dB
MP3 Decoder
Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder
Compliant with Windows Media Audio
USB Version compatibility
USB 1.1/2.0 full speed
File System
FAT 32/16/12
Maximum Supply current
1000mA
D/A Converter
16 bit
MP3 Decode
WMA Decode
WAV Decode
Linear - PCM Files
flac Decode
FLAC files up to 48kHz/16bit
Maximum Power
Output Power (DIN45324,+B=14.4v)
22W x 4
Output frequency band
20Hz ~ 20kHz
Preout Level
2500mV / 10kOhm,
Preout Impedance
≤ 600Ohm
Speaker Impedance
4Ohm ~ 8Ohm
AUX Frequency Response
AUX Maximum Input Voltage
1000mV
AUX Input Impedance
30kOhm
Bass Tone Control
100Hz ±8dB
Middle Tone Control
1kHz ±8dB
Treble Tone Control
12.5kHz ±8dB
Low Pass Filter Frequency (Hz)
Through/85/120/160Hz
Subwoofer Level (dB)
-15 dB to +15dB
Release keys
2 pieces
Escutcheon
Installation Sleeve
DC cord (Mitsumi to ISO)
15 cm
Operating voltage
14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption
10A
Dark Current Consumption
Below 1mA
Dimensions (WxHxD)
182 x 53 x 155.5mm
Weight
1200 gr.
Operation Temperature Range
-10°C ~ 60°C
Instruction Manuals
Multi-language quick Guide
