Key Facts at a Glance

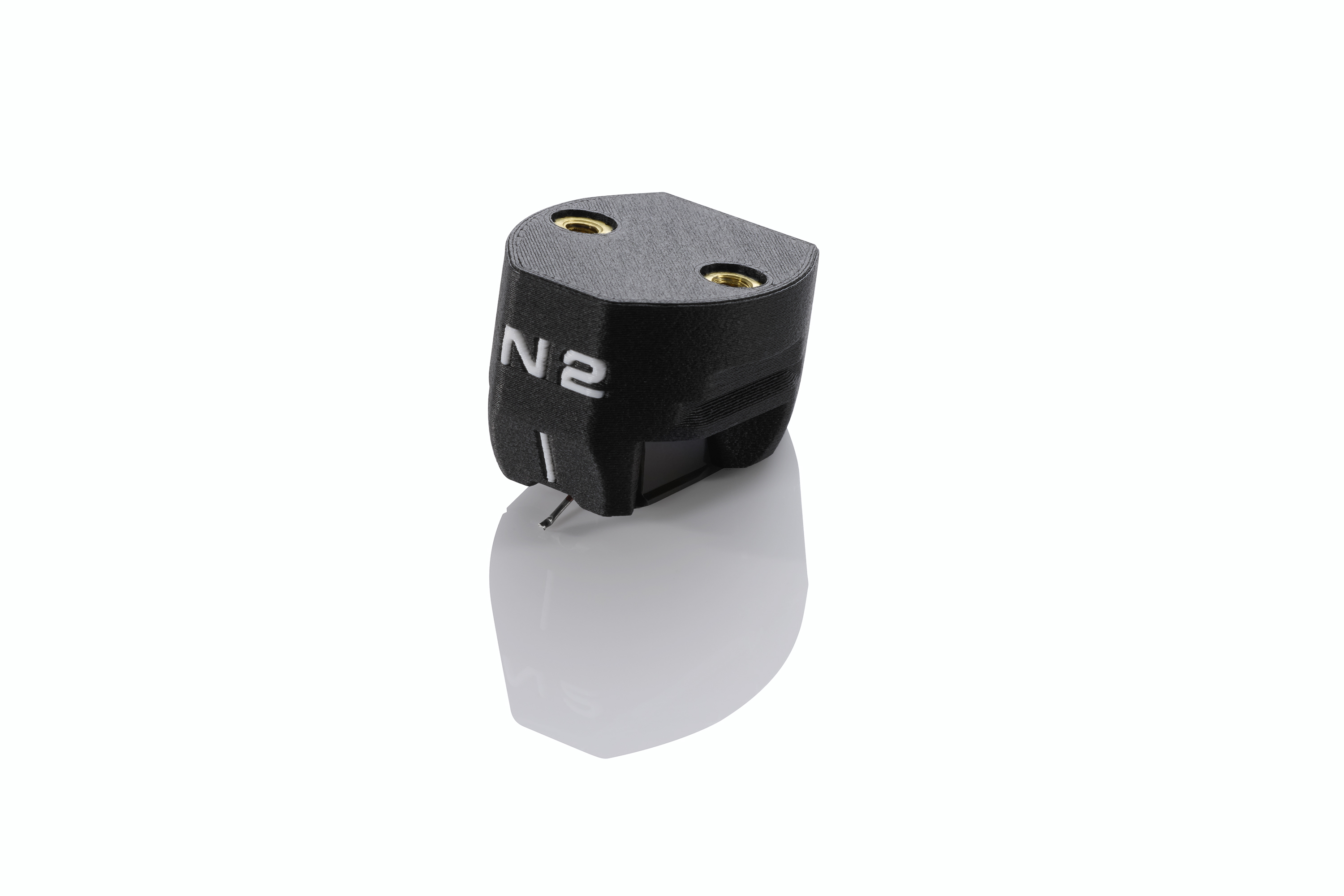

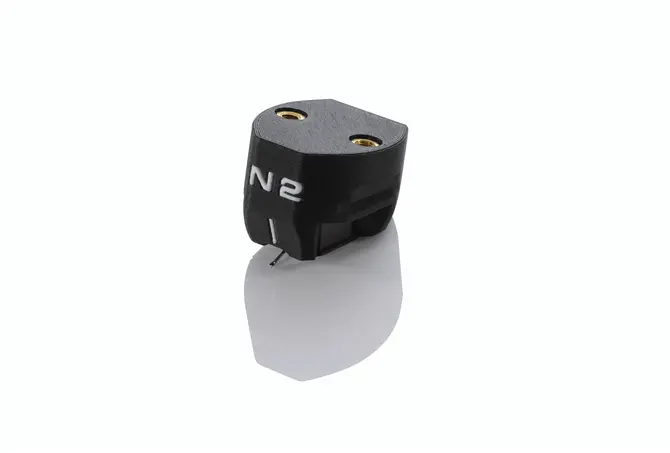

- New clearaudio N2 moving magnet (MM) cartridge
- Highly resonance-resistant thanks to its carbon fiber-reinforced PETG body
- Output voltage: 3.3 mV
- Lightweight design at just 8.5 grams, ensuring compatibility with a wide range of tonearms
- Plug-in stylus assembly system enables quick and easy stylus replacement
- Available now
Advanced Materials Engineering
The N2’s body is manufactured from a specially formulated PETG-CF composite, reinforced with carbon fibers. This advanced material provides significantly greater rigidity than conventional plastics.
- Low Resonance: The material structure minimizes unwanted vibrations, creating a clean and stable sonic foundation.
- Precision Finish: A high-quality black laser-engraved finish underscores the cartridge’s industrial high-end character.
- Secure Mounting: Integrated threaded metal inserts ensure stable and reliable attachment to the headshell.
Optimized Performance
Refined manufacturing standards and meticulous component selection allow the N2 to unlock its full performance potential, making it a compelling choice for discerning vinyl enthusiasts.
- Enhanced Dynamics: With an increased output voltage of 3.3 mV, the N2 offers powerful, detailed playback on a level comparable to the acclaimed concept v2 series.
- Ideal Weight: At precisely 8.5 grams, the N2 is significantly lighter than the aluminum-bodied N1. This eliminates potential compatibility concerns and allows the N2 to perform exceptionally well with a wide variety of tonearms, particularly lighter designs.
The clearaudio N2 combines innovative 3D-printing technology with advanced materials to deliver maximum flexibility and establish a new benchmark for universally compatible moving magnet cartridges.
Like the N1 before it, the N2 features clearaudio’s proven plug-in stylus assembly system. The stylus unit can be replaced quickly and easily whenever required, simplifying maintenance and supporting the cartridge’s long-term durability.
Technical Data
| Total mass: | 8.5 g (± 0.2 g) |
| Frequency response: | 20 Hz - 20 kHz |
| Output voltage (1kHz,5cm/s): | ~ 3.3 mV |
| Channel separation (1kHz): | 20 dB |
| Channel balance (1kHz): | >1.5 dB |
| Tracking ability: | 80 μm |
| Recommended tracking force: | 2.2 g (± 0.3 g) |
| Coil impedance (1kHz): | 0.66 kΩ |
| Coil inductance: | 400 mH |
| Load resistance: | 47 kΩ |
| Load capacitance: | 100 pF |
| Cantilever / stylus shape: | Aluminium / Elliptical |
| Compliance: | 15 µ/mN |
| Cartridge body: | PETG-CF |
