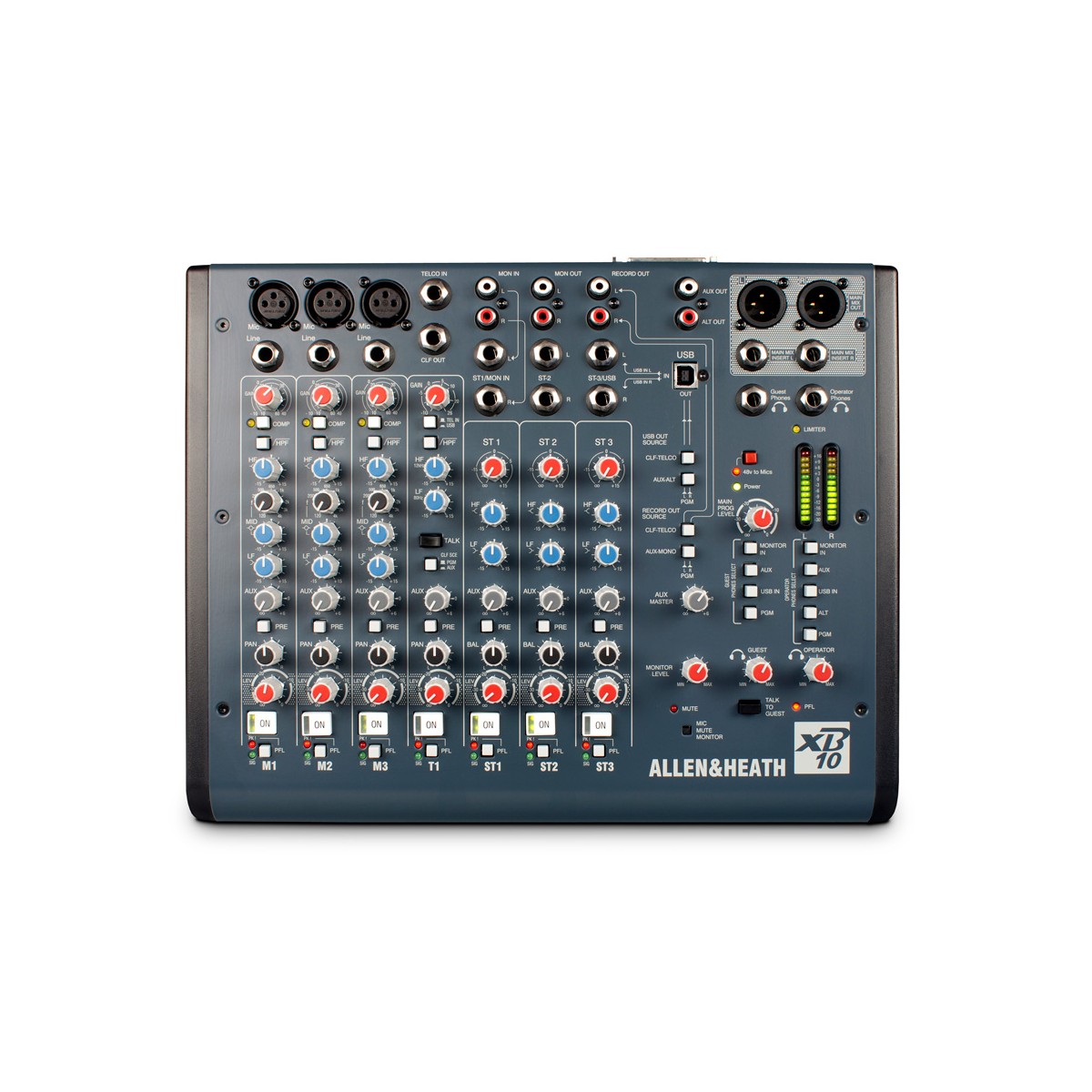

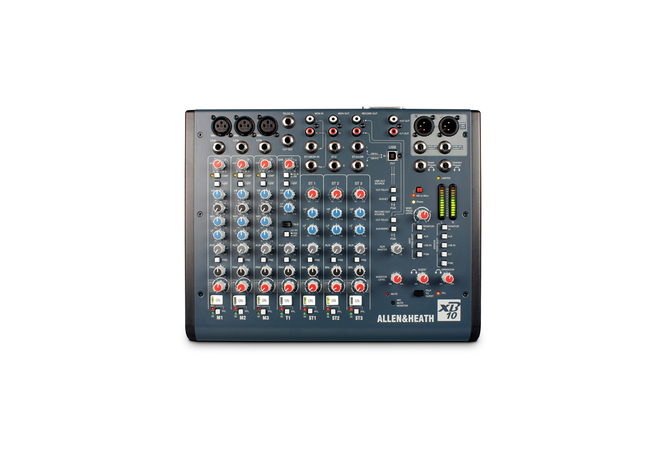

Αναλογική κονσόλα ήχου XB-10 broadcasting της Allen&Heath. Είναι ιδανική για μικρό ραδιοφωνικό σταθμό ή internet radio. Διαθέτει 3 εισόδους mic/line, 3 εισόδους Stereo και 1 είσοδο Telco με επιλογή USB routing για εισερχόμενες κλήσεις VoiP.

Χαρακτηριστικά:

• 3 mic/line and 3 stereo inputs
• Telco channel with optional USB routing for VoIP
• CompACT compressors on mic channels
• ON switch logic on mic and telco channels
• Start/cue logic outputs on stereo channels
• Separate headphones mix and outputs
• Auto mutes on control room outputs
• Remote mute facility on mic channels
• Responsive 3-band, swept mid EQ with MusiQ
• Configurable USB stereo audio in/out
• XLR main outputs with inserts and variable limiter
• Aux / Alt bus for external processing, recording or auditioning

USB

XB-10 comes with a full duplex USB soundcard built-in and many useful routing options for recording and broadcast applications.

MusiQ

XB-10 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ with optimised slope for a variety of sources.

Output Limiter

A variable limiter ensures the level does not exceed a pre-defined level. Back panel option switches allow the limiter to be bypassed. A trim pot is used to vary the threshold and an LED on the front panel indicates when the limiter has triggered.

CompACT Compressor

XB-10 features our ComPACT compressor on each of its mic channels. CompACT (Adaptive Compression Technology) is a program-dependent audio leveller. Unlike other compressors, which are effective only at reducing loud sounds, CompACT combines both downward and upward compression with peak limiting. Low level signals are given a gain boost, mid level signals are mildly compressed with a soft knee response, and high level signals are limited.
